Description
Bloomsbury Chamfered Antique Mahogany 3 gang 20AX 2 Way Toggle Polished Brass Fluted Dome/White Collar
SKU: BCAFT23PBW
Category: Bloomsbury Fluted Dome Toggles
Type
3 gang 20AX 2 Way TogglePlate Finish
Antique MahoganyInsert Finish
Polished Brass Fluted Dome/White CollarAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Bloomsbury Fluted Dome |
| Page-Sort-Order | 031-016-023 |
| Insert-Type | 3 gang 20AX 2 Way Toggle |
| Insert-Colour | Polished Brass Fluted Dome/White Collar |
| Uf-ItmLabelTechInsert | T23-BY |
| Uf-HAM-Plate-Range | Bloomsbury Chamfered |
| Uf-HAMPlate-Generic-Size | Triple |
| Range-Name | Bloomsbury Fluted Dome |
| Item-Long-Description | Bloomsbury Chamfered Antique Mahogany 3 gang 20AX 2 Way Toggle Polished Brass Fluted Dome/White Collar |
| PlateFinish | Bloomsbury Chamfered Antique Mahogany |
| EAN13-Barcode | 5028690106876 |

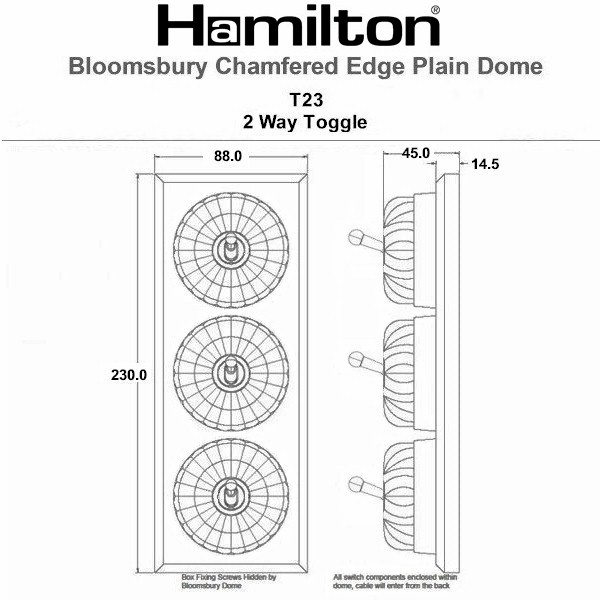

| Dimensions(Nominal) | Triple: Height = 230mm Width = 88.0mm Depth = 14.5mm Plinth, Collar and Dome Depth = 45.0mm |
| Switched-Poles | Single |
| Current-Rating | 20AX |
| Maximum-Load | 20 Amp inductive |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 5x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 2×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Double insulation (Cl 10.3.2 of BS60669) |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |
| Wiring-Image | WD2Wv2.jpg |
| Item-Image | BCAFT23PB-W.jpg |
| Dimension-Image | TD-BCFT23.jpg |
| Luckins-TSI | 391578681 |
| Tech-Sheet-Page-Footer | BCAFT23PB-W – Bloomsbury Chamfered Antique Mahogany 3 gang 20AX 2 Way Toggle Polished Brass Fluted Dome/White Collar |
| product-code | S BY CH-AM |
| family-code | S BLM FLT |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533203626 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 1 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 31 |
| HAM-SortOrder | 16 |
| InsertSortOrder | 023 |
| Generic-Size | Triple |
| Blooms-Plinth-Collar-And-Dom | 45.0mm |
| Box-Fixing-Hole-Centres | 182mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Antique Mahogany |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 3 |
| MainInsertColour | Polished Brass Fluted Dome |
| TrimColour | White Collar |
| Last-Updated-At-Hamilton | 23/01/2026 |
| WoodEdge | Chamfered |
| Fixing-Hole-Centres | Box Fixing = 182mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Antique Mahogany |
| Subheader2 | Bloomsbury Fluted Dome Toggles |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Blms Cha A/M F/Dome 3g 20AX 2W Toggle PB |
| Height | 230mm |
| Width | 88.0mm |
| Depth | 14.5mm |
